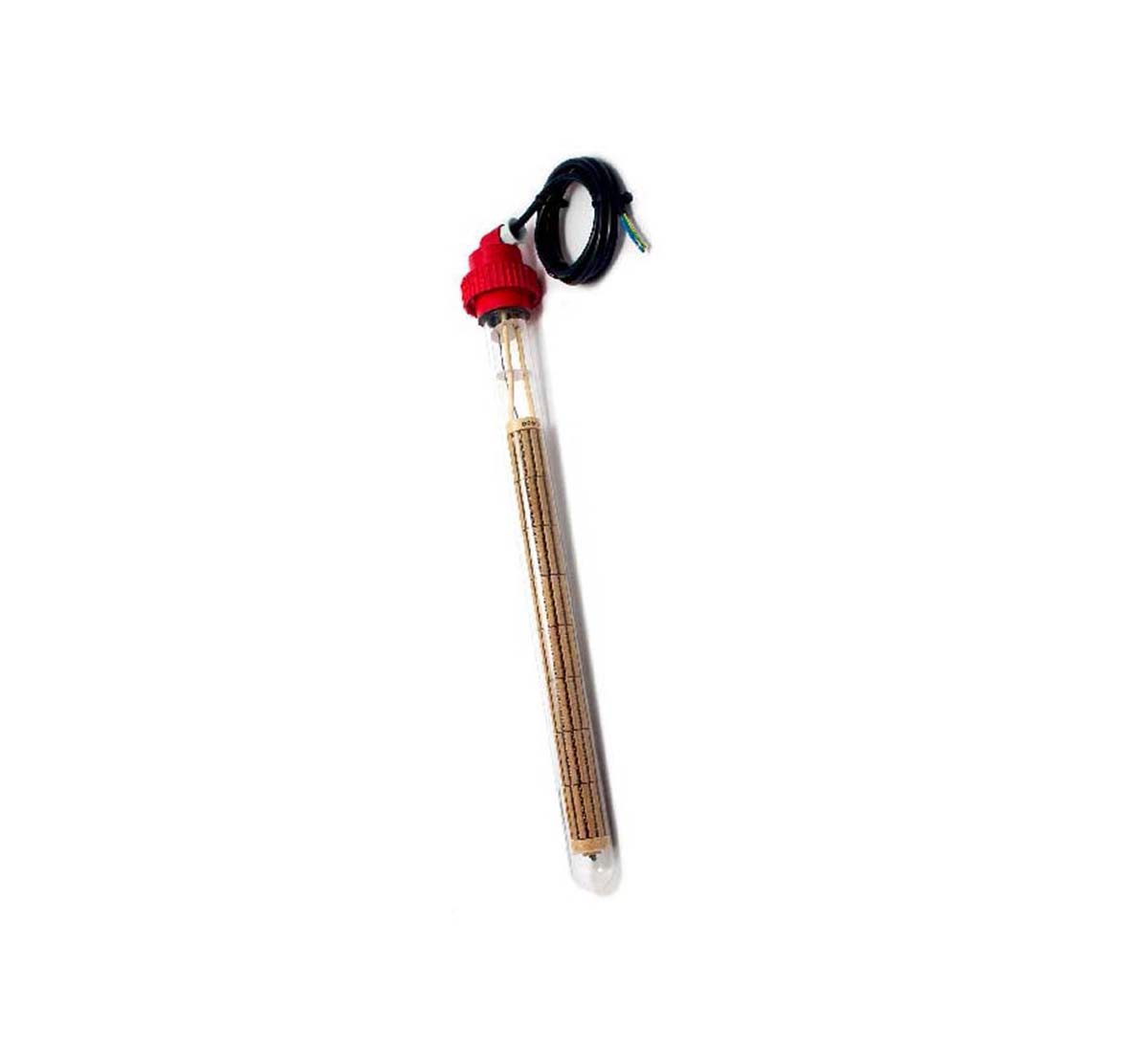

Backer over the side immersion heaters with tube in glass
Backer standard over the side immersion heaters are suitable for heating liquids for instance in chemical, degreasing and deacidification baths at open vessels such as tubs, barrels and buckets. The heater consists of a ceramic element with embedded heating coils assembled in a tube of glass fitted with a terminal box and a cable. It is important to choose tube material that is resistant to the actual liquid and chemicals at heating.
Product information
Downloads
Technical data
Inactive length
150 mm
Standards
EN 60335-1
Power tolerance
+5% / -10%
Material
Tube Ø44 mm of glass Ceramic element with embedded heating coils Terminal box 80/56 mm in polyamide plastic PA max 70ºC during operation
Electric Connection
2 m power cable without plug
