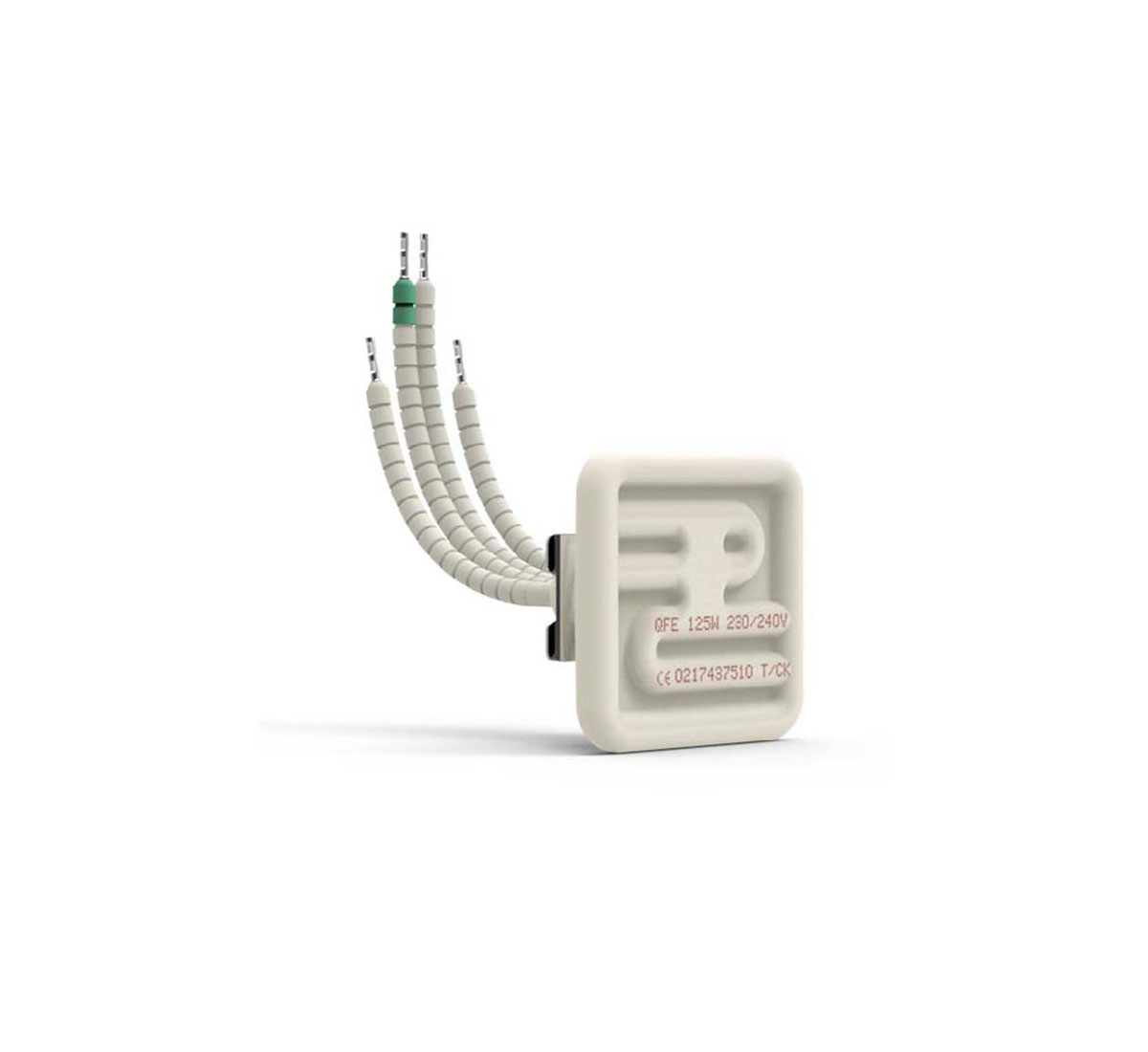

Infrared elements in ceramic QFE-K Quarter flat element with thermocouple
The standard range of ceramic infrared elements in stock are used in a wide range of industrial and engineering applications such as thermoforming, packaging, paint curing, printing, drying, gluing, sterilisation, roasting etc. They are also very effectively in infrared outdoor heaters and saunas. Most plastics and many other materials absorb infrared best in wavelength 2-10 µm, which makes the ceramic heater the most popular radiant emitter on the market. The solid cast heater body is flat, producing a diffuse radiant output to target distance in some applications.
Max working temperature
Max permissible 750ºC
Ceramic solid body in white glace colour with an embedded high temperature resistance wire and a built-in thermocouple type K
100 mm ceramic beaded power leads
