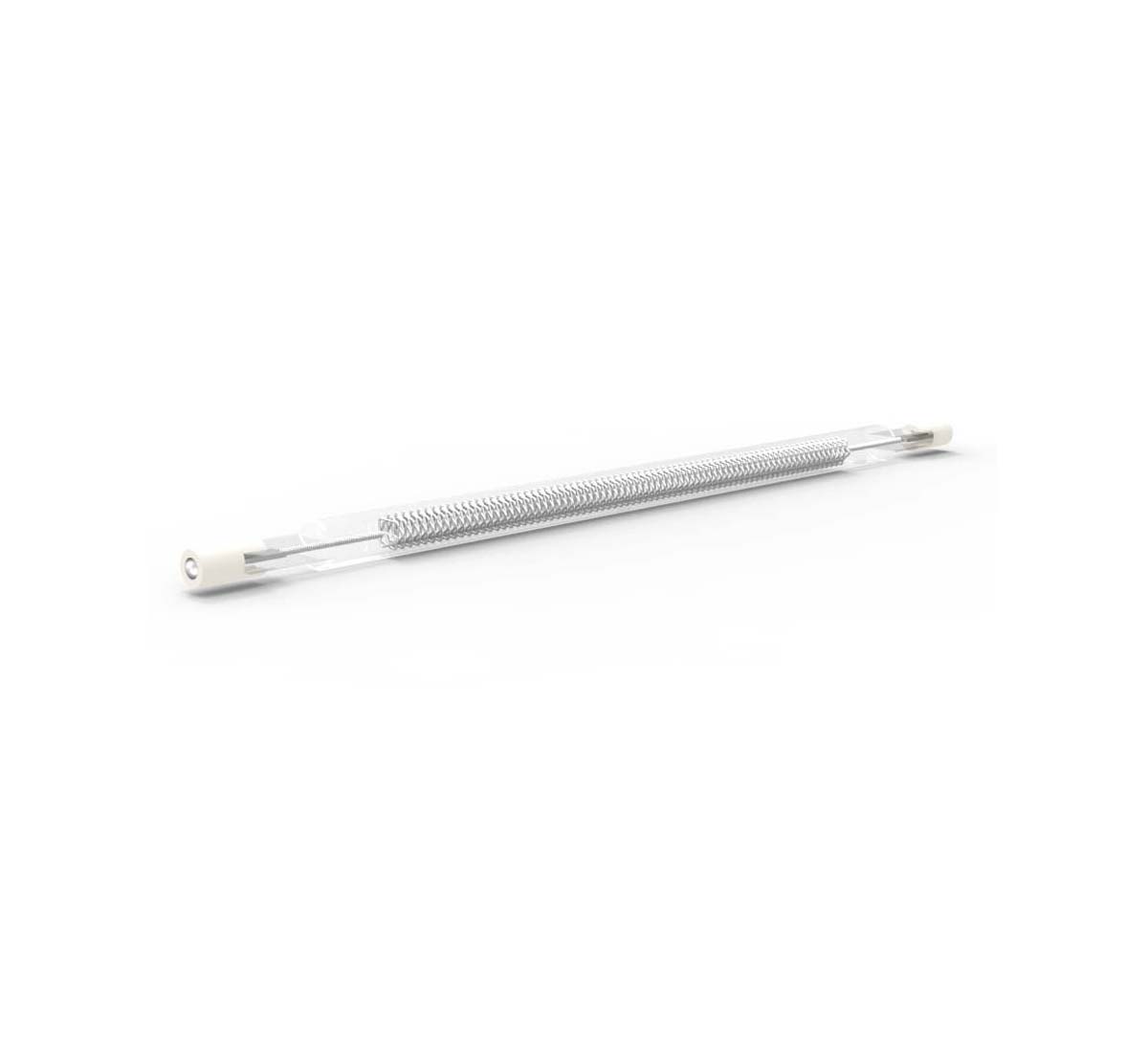

A picture of an Infrared elements in quartz QT – quartz tungsten element

Infrared elements in quartz QT - Quartz tungsten element

The standard range of quartz halogen infrared heating elements in stock are used in a wide range of industrial and engineering applications such as thermoforming, powder paint, pre-lacquering, sublimation, pasteurisation, printing, drying, gluing, sterilisation, roasting etc. Quartz halogen elements heats up and cool down within seconds making them particularly suitable for systems requiring a very fast thermal response and short cycle times. Heat output is also very high making these heaters useful in high heat demand or in fast moving processes like paper processes etc.

StartProductsHeating elementsIR-elementsInfrared elements in quartz QT - Quartz tungsten element
Accessories
Downloads

Technical data

Standards

CE

Voltage

240 V

Material

Quartz glass tubes dia. 10 mm filled with halogen gas and sealed with a tungsten filament coil

Electric Connection

R7s terminations with 200 mm PTFE-insulated leads
