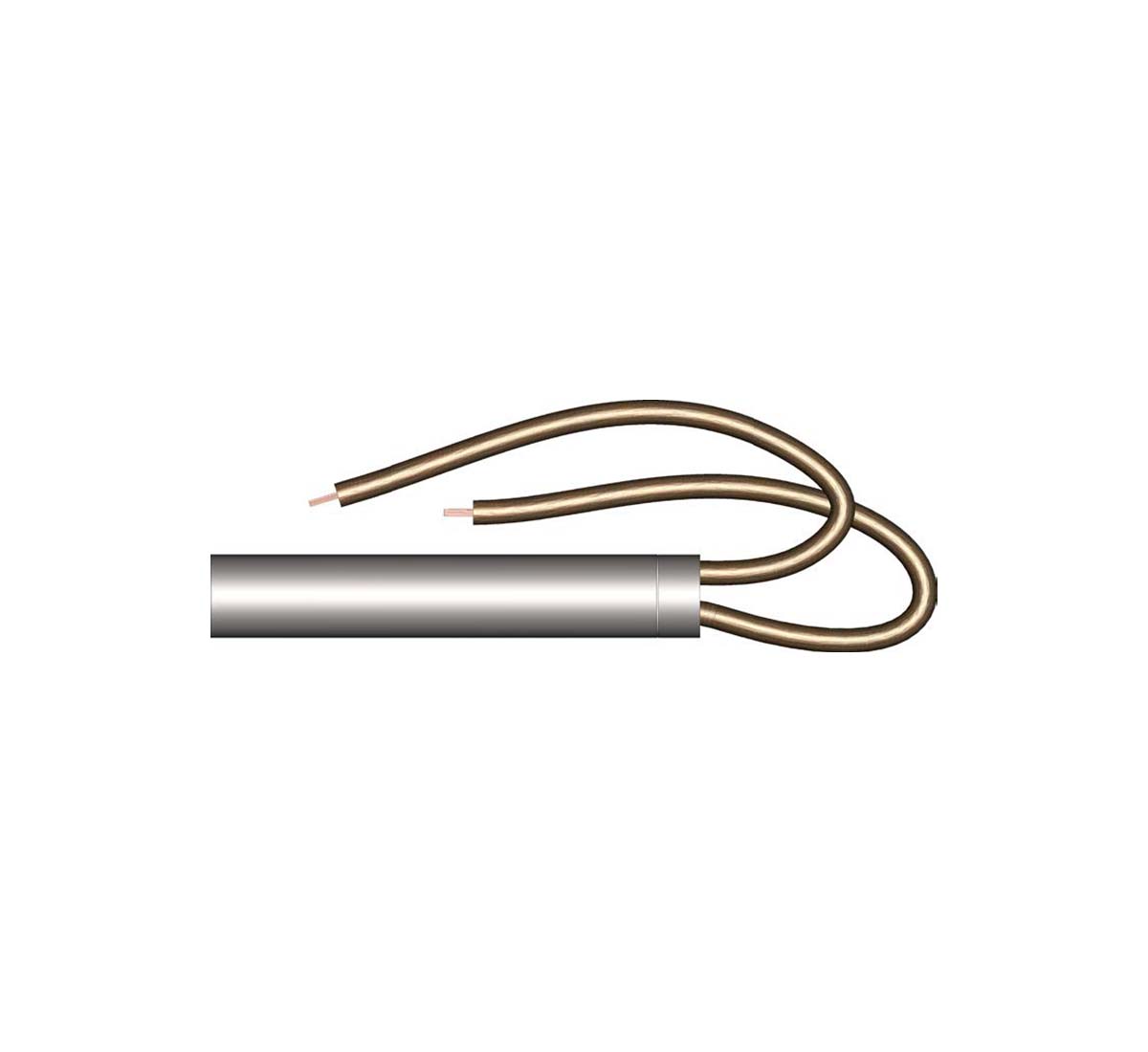

Cartridge heaters - Ø10 mm
The standard range of cartridge heaters in stock are used for heating of solid, liquid or gas in a wide range of industrial and engineering applications within plastic-, packaging-, rubber-, wood- and paper industry, foundries, medicine technical and laboratorial industry. Typical applications are heating of moulds, hotplates, tools for sealing and marking equipment etc. The cartridge heater design, with a resistance wire wrapped around a magnesium oxide core positioned close to the metal casing, gives an excellent heat distribution allowing a very high power at a limited space.
5 mm at bottom end, 10 mm at connection end
CE, EN 60335-1
W/cm² enligt tabell
Cartridge Ø10 mm in stainless steel EN 1.4541/AISI 321
External cable connection with 300 mm high temperature resistant cables 350ºC welded to the cartridge connection pins
