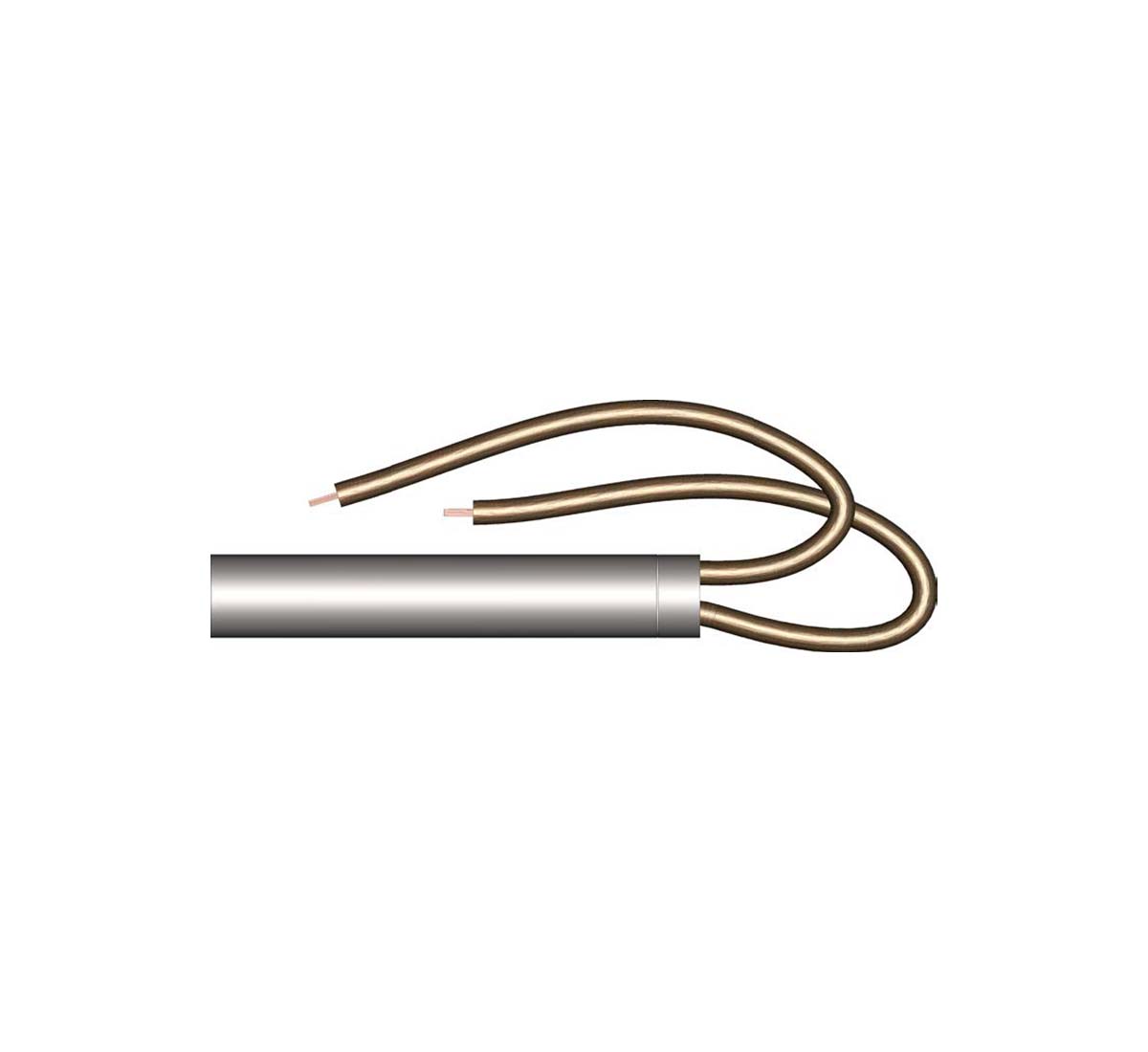

A picture of cartridge heaters - Ø16 mm

Cartridge heaters - Ø16 MM

The standard range of cartridge heaters in stock are used for heating of solid, liquid or gas in a wide range of industrial and engineering applications within plastic-, packaging-, rubber-, wood- and paper industry, foundries, medicine technical and laboratorial industry. Typical applications are heating of moulds, hotplates, tools for sealing and marking equipment etc. The cartridge heater design, with a resistance wire wrapped around a magnesium oxide core positioned close to the metal casing, gives an excellent heat distribution allowing a very high power at a limited space.


Technical data

Inactive length

5 mm at bottom end, 10 mm at connection end


230 V

Surface load

W/cm² enligt tabell

Power tolerance

+5% / -10%


Cartridge Ø16 mm in stainless steel EN 1.4541/AISI 321

Electric Connection

External cable connection with 300 mm high temperature resistant cables 350ºC welded to the cartridge connection pins
