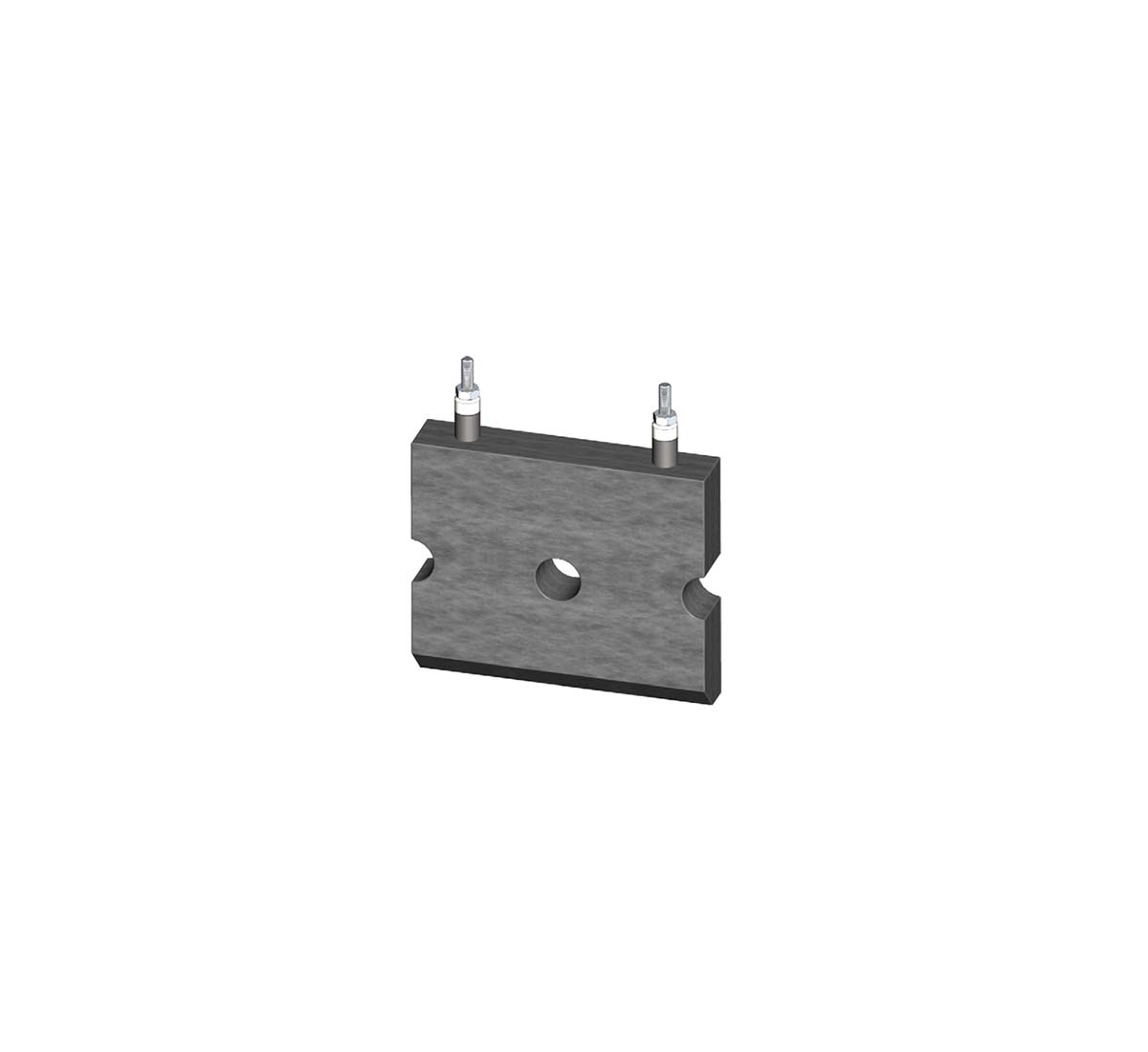

Backer hot plate with cast-in tubular heating element
Backer standard heating plate in stock is suitable mainly for contact heating of tooling and heat tables as well as for indirect heating of liquids in small containers. Assembly is simple done by fixing bolts and adding of heat transfer cement between heating plate and the tooling or container casing. When needed a number of plates could be assembled side by side.
Product information
Accessories
Downloads
Technical data
Norm
Backer 40579311 CE
Standards
SS 4330701, SS-EN 60335-1, UL-1030, ISO 6469-3
Power tolerance
5% / -10%
Material
Tubular element Ø8,5 mm in mild steel cast-in in aluminum alloy
